REAL EQUIPMENT REFERENCEPRIMARY CIRCUIT01

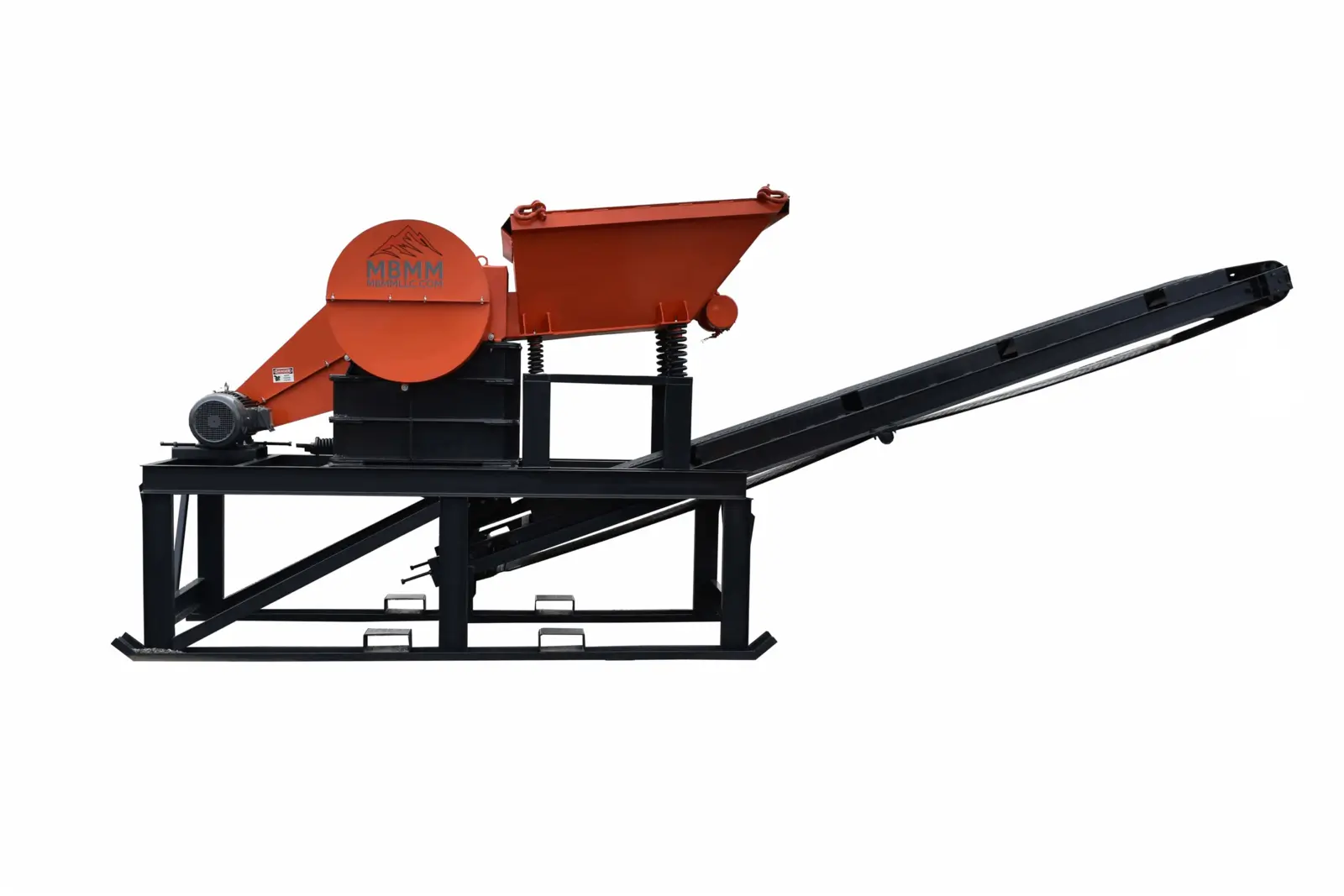

Integrated jaw crusher module
Vibrating hopper, jaw crusher and stacking conveyor assembled as one movable crushing system.
- Hard-rock feed
- Bulk samples
- Multiple jaw sizes
Canadian mine-site processing
CRUSH. MILL. RECOVER.WHERE THE ORE IS.
Canada Millwork operates portable hard-rock crushing and milling circuits for mine sites, bulk samples, exploration programs and pilot production.
PRIMARYJaw crushing
SECONDARYCone or HPGR
GRINDINGSAG · Ball · Rod
RECOVERYSeparate and concentrate
01 / CRUSHING IN ACTION
THE FIRST CUT
SETS THE CIRCUIT.
We start with the feed, target size and tonnage, then operate the crushing sequence required to deliver controlled material to the mill.
View the production flow

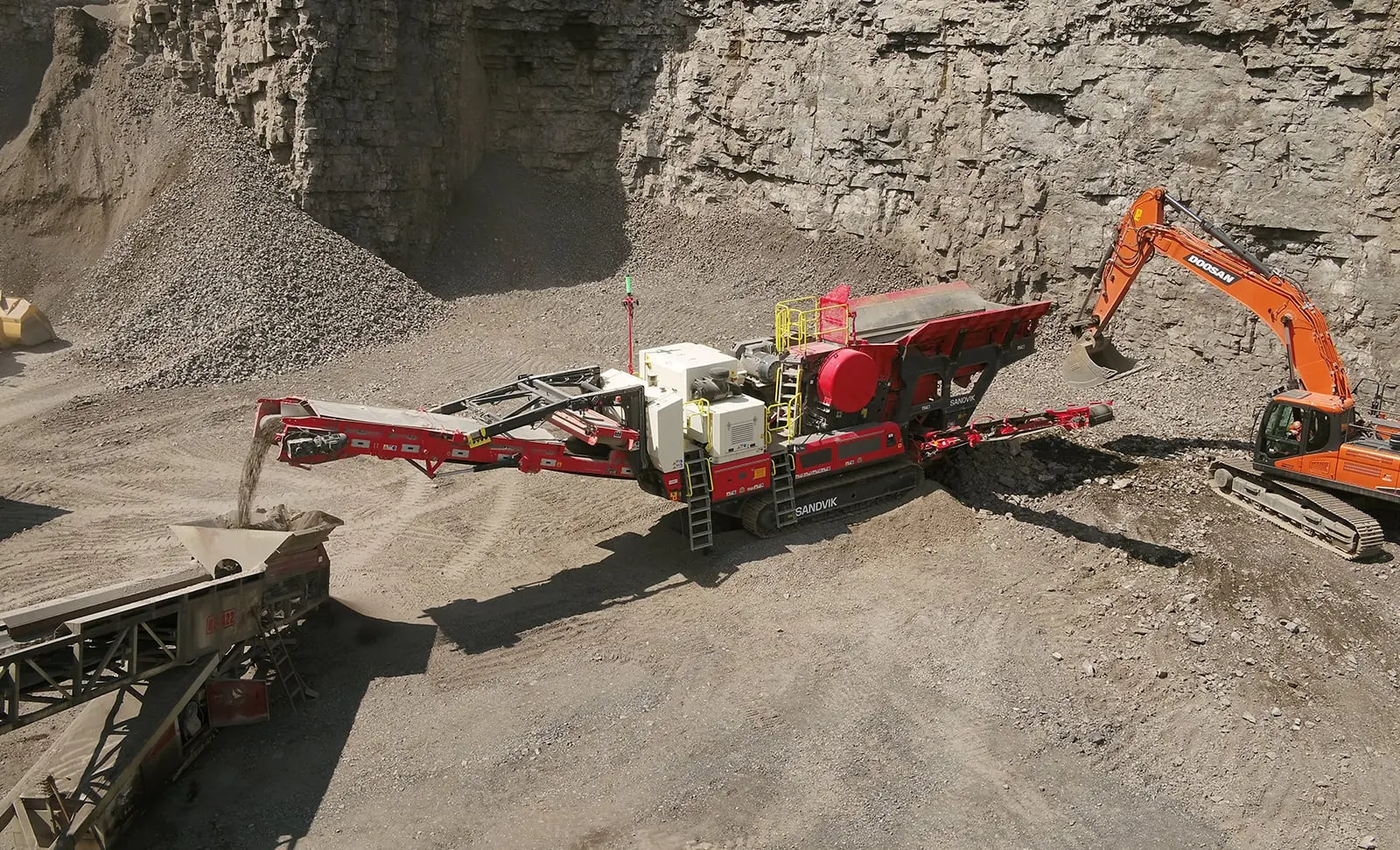

REAL MOBILE JAW CRUSHER IN OPERATIONFROM FEED TO MILLONE
OPERATING
SEQUENCE.
OPERATING
SEQUENCE.
Jaw crusher → cone crusher or HPGR → SAG mill → ball mill → mineral separation.
02 / PORTABLE EQUIPMENT
PORTABLE PLANTS.
REAL HARDWARE.
Road-transportable circuits can reduce site works, accelerate mobilization and bring crushing, grinding and recovery closer to the ore.
REAL EQUIPMENT REFERENCE
REAL INTEGRATED ORE PROCESSORCOMPACT PROCESSING CIRCUIT02

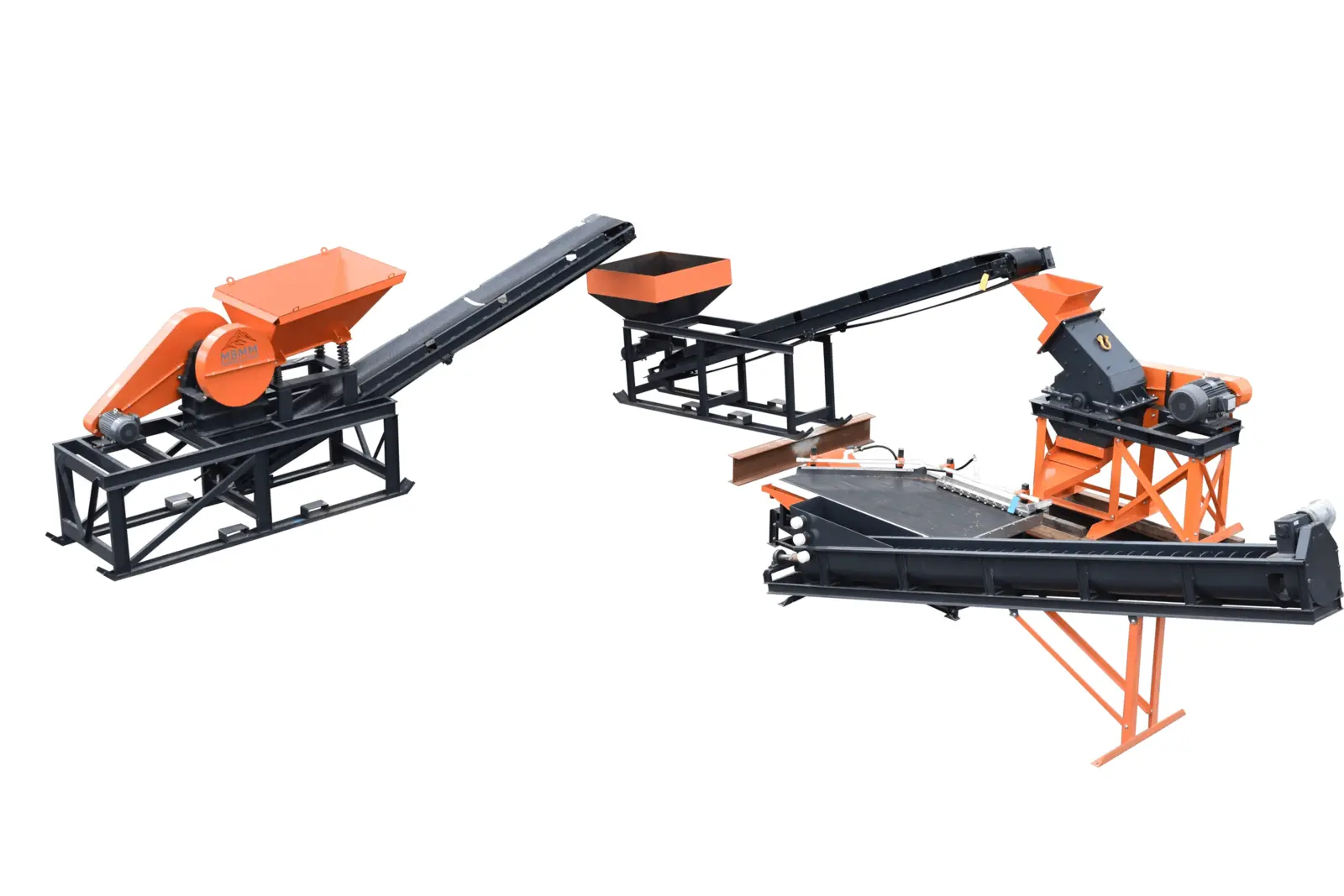

Integrated pilot ore processor
Linked jaw crushing, conveying, grinding and recovery equipment for bulk sampling and smaller operations.
Official equipment reference
REAL MODULAR RECOVERY PLANTRECOVERY CIRCUIT03

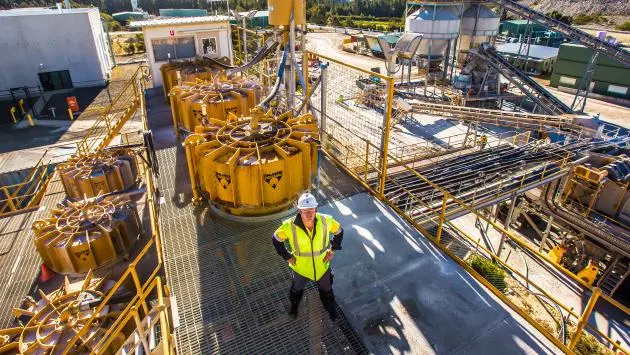

Modular mineral recovery plant
Compact modular equipment can combine gravity pre-concentration, flotation and intensive recovery stages.
Official equipment reference
REAL HAMMER MILLSMALL-SCALE GRINDING04

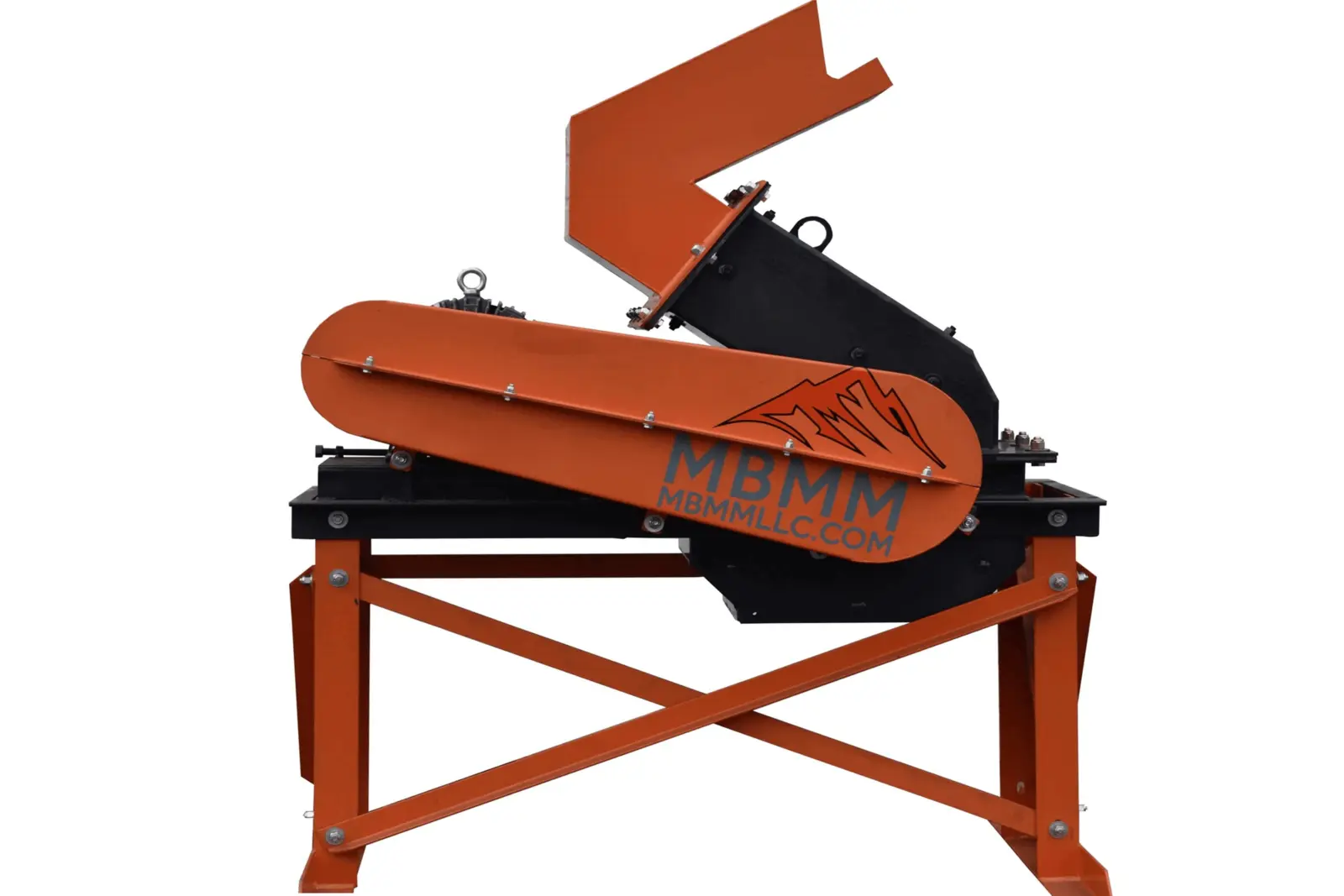

Skid-mounted hammer mill
A compact impact-grinding option for exploration, pilot work and smaller hard-rock feed.
Official equipment reference
REAL BALL MILLFINE GRINDING05

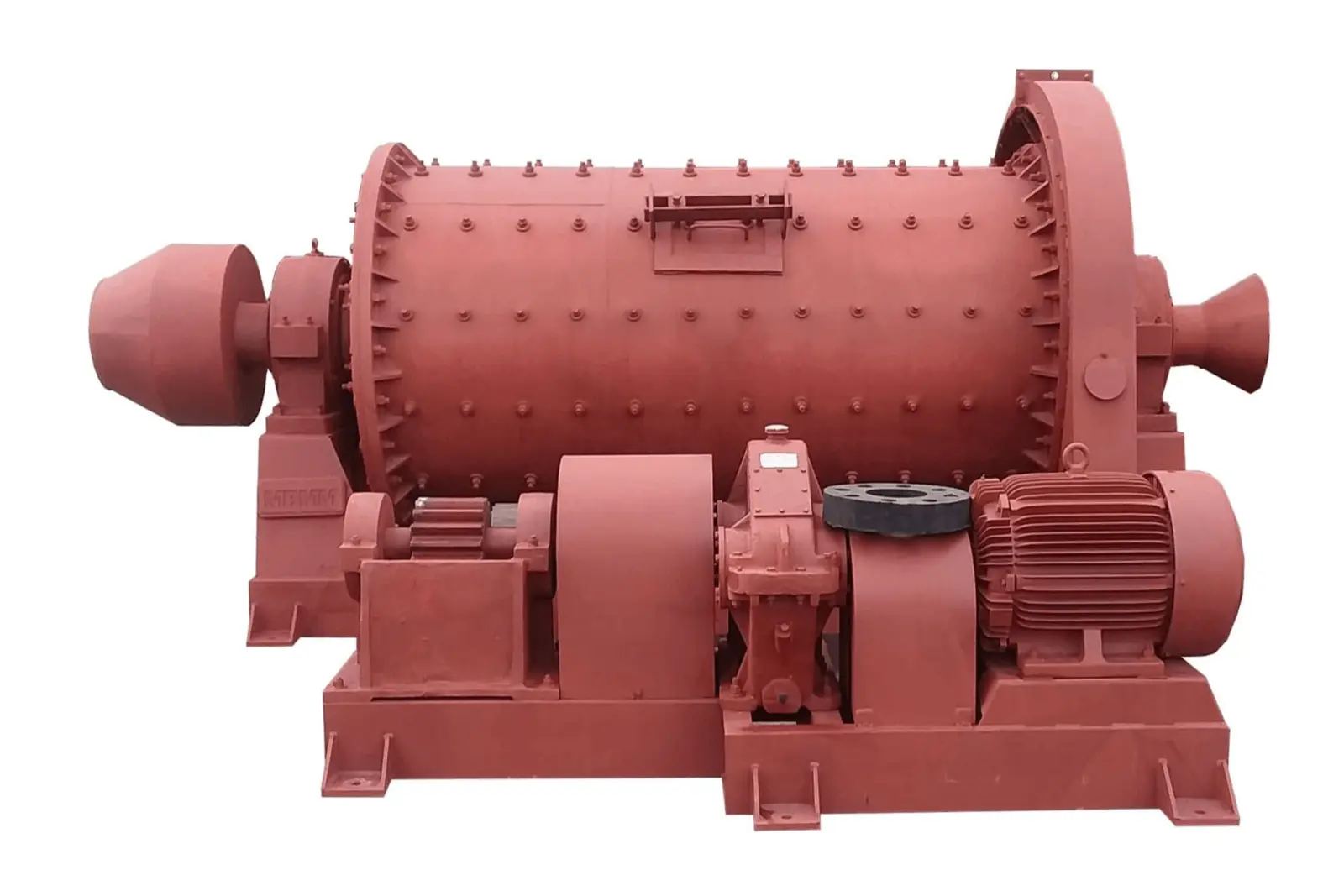

Industrial ball mill
A continuous-duty fine-grinding stage used after crushing to reach the selected liberation size.
Official equipment reference
REAL TRACKED CONE CRUSHERSECONDARY CRUSHING06
Tracked mobile cone crusher
A mobile secondary-crushing stage for reducing primary-crushed rock before the grinding circuit.
Official equipment reference
REAL GRAVITY SHAKER TABLEMINERAL RECOVERY07

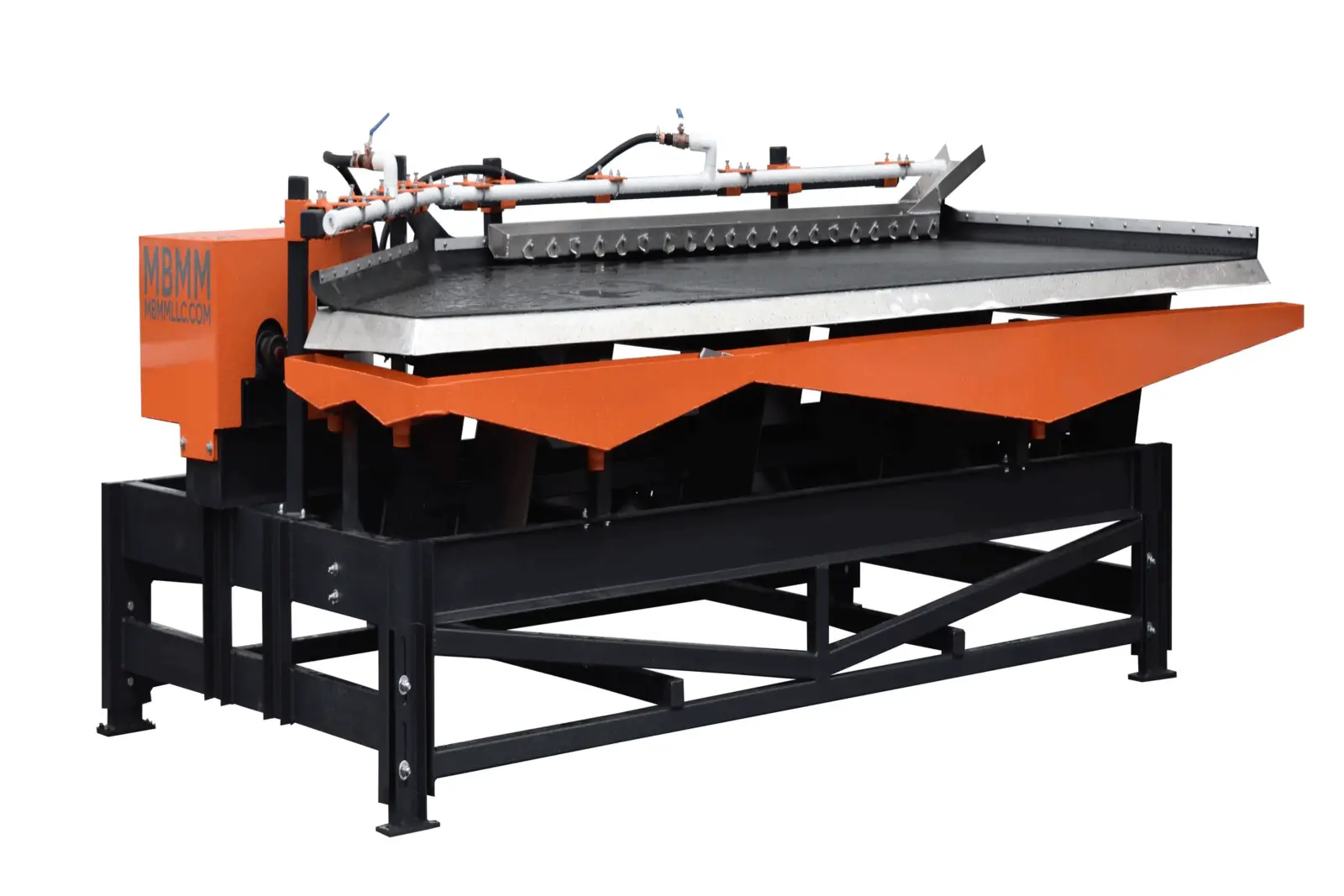

Gravity shaker table
A density-separation option for recovering high-density mineral concentrate from prepared slurry.
Official equipment referenceEvery image is a different, real manufacturer reference matched to the equipment named. Final plant selection is project-specific.
03 / OPERATING CAPABILITY
WE OPERATE THE
COMPLETE CIRCUIT.
Primary breakage through final recovery, scaled to a production mine or an exploration program.
Primary crushing
Portable jaw crusher circuits for hard-rock feed and bulk sample campaigns.
Secondary crushing
Cone crusher or HPGR stages configured around the target mill feed.
Grinding
SAG, ball, rod, hammer and roller mill options for production or pilot duty.
Mineral recovery
Screening, gravity concentration, flotation and other selected separation routes.
04 / PROCESS ROUTES
FULL PRODUCTION
OR PILOT SCALE.
Two operating routes. One objective: move rock through a stable, controlled recovery circuit.
AMine-site production circuit
ROM feed
Blasted rock enters the circuit
Jaw crushing
Primary reduction at the face
Cone / HPGR
Secondary size control
SAG milling
Coarse grinding stage
Ball milling
Fine grind to liberation
Recovery
Flotation or separation
BExploration and pilot circuit
Mobile jaw
Compact primary crushing
Hammer / roller
Flexible size reduction
Ball / rod mill
Controlled grinding
Concentrate
Screening and recovery
05 / QUESTIONS AI AND CUSTOMERS ASK
CLEAR ANSWERS.
EASY TO FIND.
Direct information about where we operate, what circuits we run and how to start a project.
01Who provides portable mine crushing and milling in Northwestern Ontario?+
Canada Millwork is based in Vermilion Bay, Ontario and operates portable hard-rock crushing, milling and mineral processing circuits for Canadian mine sites, exploration programs, bulk samples and pilot projects.
02What crushing and milling process can Canada Millwork operate?+
A production route can include jaw crushing, cone crushing or HPGR, SAG milling, ball milling and flotation or another mineral separation method. Smaller pilot routes can use a mobile jaw crusher, hammer or roller mill, ball or rod mill and screening or concentration.
03When is a portable mineral processing plant a good fit?+
Portable and modular plants can suit bulk samples, pilot production, smaller-tonnage projects, short mine-life deposits and remote projects where reduced civil work and faster mobilization are important.
04How do I discuss a mine processing project with Canada Millwork?+
Email [email protected] or call 905 321 9957 with the material type, estimated tonnage, project location and required processing stage.
Built for Canadian conditions
THE NORTH IS NOT
AN AFTERTHOUGHT.
Remote access, haul distance, weather, available power and the site footprint are part of the operating plan from day one.
Start a project
WHAT DO YOU
NEED TO CRUSH?
Send Cindy the material, approximate tonnage, location and the processing stage you need.
EMAIL[email protected]
PHONE905 321 9957
LOCATION18 Industrial Park Road
Vermilion Bay, Ontario P0V 2V0
